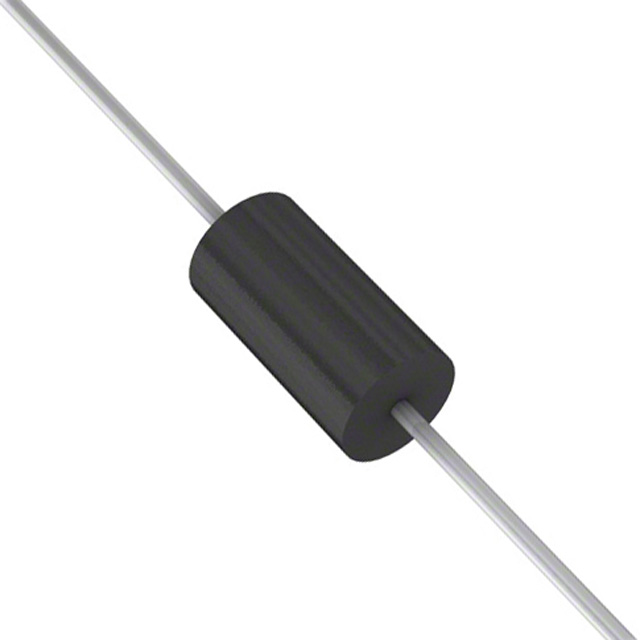

1.5KE110A (pack of 10)

FEATURES: In short, the provided information describes the specifications and characteristics of a diode or transient voltage suppressor device. Here’s a concise summary: – **Peak Pulse Capability:** 1500W at a 10/1000μs waveform, with a very low duty cycle (0.01%). – **Package:** DO-201 (glass passivated chip junction). – **Response Time:** Very fast, typically less than 1.0ps from 0 Volts to BV min. – **Clamping Capability:** Excellent. – **Failure Mode:** Typically shorts from over-specified voltage or current. – **Testing Standards:** Whisker test based on JEDEC JESD201A, ESD protection per IEC 61000-4-2 (30kV air/contact), EFT protection per IEC 61000-4-4. – **Electrical Properties:** Low incremental surge resistance, typical leakage current (IR) less than 1μA when VBR min > 12V. – **Temperature Handling:** Can withstand high temperatures up to 260°C during reflow soldering. – **Temperature Coefficient:** VBR (breakdown voltage) varies with temperature based on a defined coefficient (αT). – **Packaging:** Plastic package rated V-0 for flammability, matte tin lead-free plated, halogen-free and RoHS compliant. – **Pb-free E3:** Indicates compliance with Pb-free standards, including lead-free interconnects and tin terminal finish.
