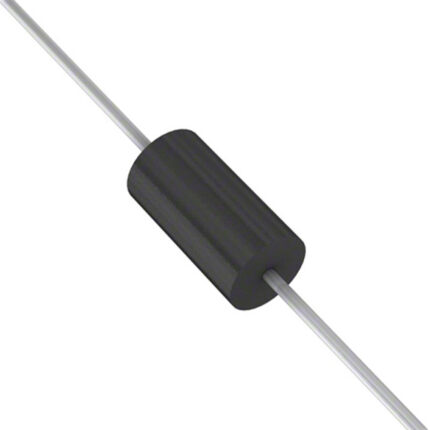

1.5KE100A (pack of 10)

FEATURE: – **Peak Pulse Power Capability**: – 1500 W at 10/1000 μs waveform. – Up to 10 kW at 8/20 μs waveform, indicating high transient surge handling capability. – **Stand-off Voltage Range**: Extensive range from 5 V to 376 V, available in both unidirectional and bidirectional configurations. – **Operating Temperature**: Maximum junction temperature (Tj max) of 175°C, supporting high-temperature environments. – **High Power Capability**: Capable of handling up to 1100 W at Tj max (10/1000 µs), ensuring reliable protection against high-energy pulses. – **Lead Finishing**: Matte tin plating, ensuring compatibility with lead-free soldering processes. – **Compliance with Standards**: – UL94 V0 for flammability rating. – J-STD-020 MSL level 1 for moisture sensitivity. – J-STD-002, JESD 22-B102 E3, and MIL-STD-750 method 2026 for solderability and mechanical integrity. – JESD-201 class 2 whisker test for mechanical robustness. – UL 497B file number: QVGQ2.E136224. – IEC 61000-4-4 level 4 (4 kV) and IEC 61000-4-2 (30 kV air discharge, 30 kV contact discharge) for ESD and electrical overstress protection. – **Application**: Designed for protecting sensitive equipment from surges below 1500 W at 10/1000 μs, suitable for high-end equipment and Switch Mode Power Supplies (SMPS) where low leakage current and high junction temperature are critical for long-term reliability and stability. This series utilizes planar technology to meet stringent performance and reliability requirements, making it ideal for applications demanding high surge handling capability and dependable protection against electrical disturbances.
