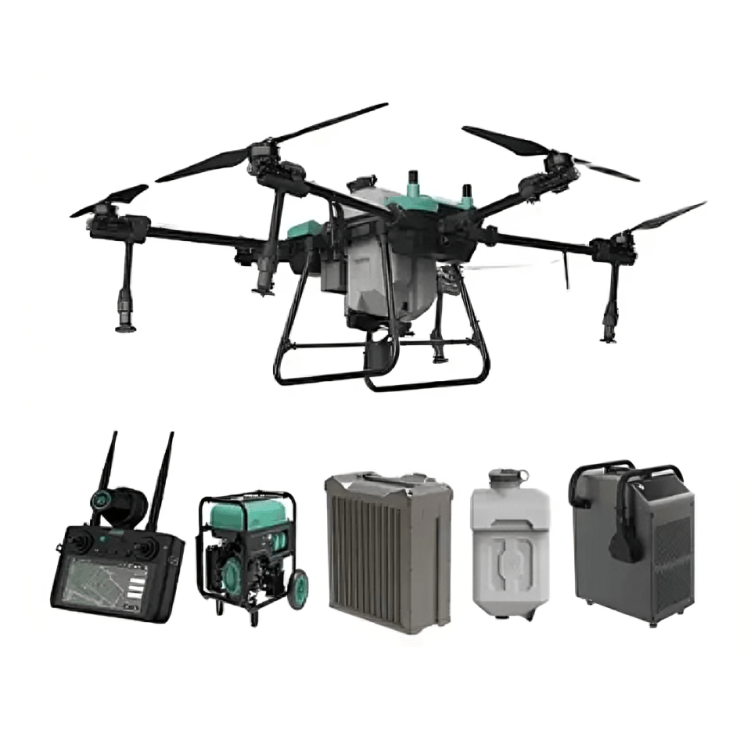

40L JTILEP UAV T40 Agriculture Drone Sprayer - R199,200.00

JTILEP Agras UAV T40 Agri Drone Sprayer, 42kg 40L R199,200.00 SKU: RNX8VS1-1-1 Categories: Agri Drones, Agri Spray Drones, Farming Equipment Order this product Additional information Brand Name JTILEP Product name Agricultural Uav Drone Pesticide Sprayer Structural layout Six-axis layout Weight 42 KG Maximum wheelbase 2100mm (six axes) Overall dimensions LxWxH 2144mm×2046mm×863mm (Arm unfolded） 1138mm×682 mm×865mm (Arm folded) Container installation mode Plug-in Battery weight 13KG Power battery 30000mAh 21Kwh 68.4V 18S-30000mAh 28% energy boost Compared with 14S-30000Ah battery Warranty with unlimited charging times for the first year after activation. Multiple choices: 220V/380V input are supported Super charger upgrade, rated power 8000W Support 220V generator input, support 220V mains input Support 380V input When the rated power of the generator is ≥8000, it only takes 11 minutes for 30%-95% When connected to the mains, the charging power is 2200W Rated operating pressure of machine 0.3-0.4Mpa Number of main rotors 6 Number of spraying nozzle 12 Type of liquid pump Diaphragm pump Flow of liquid pump 13.5 L/min Operation spraying width 11 m Output power of charger 220V Single-phase input: 380V three-phase 8000W (Direct connection with generator) 2200W (Direct connection with mains) Battery charging time Lithium battery 20%-95% about 13min Generator Dual output channel 1. AC output 220V/8000W 2. AC output 220V/2200W Reference fuel consumption 500ml/kWh FPV camera Front camera, rear camera Flight parameters …………………….. Hovering accuracy RTK: Horizontal ±10cm, vertical ±10cm Radar: ± 0.1m Spraying full-load hovering 8.5 min No-load hovering time 23 min Ranging accuracy of ground simulating radar 0.1m Fixed height range 1-30m Obstacle avoidance perception range 1-30m Packing Iron Frame Maximum pitch angle of obstacle avoidance radar 15° Motor rated power 2000w*6pcs Remote control signal distance ≤1500m Remote control and RTK inker The CPU performance is increased by 3 times, the memory is doubled, and it is easy to run various APPs Standard RTK high-precision inker Optimize image transmission quality and image transmission distance Built-in 5200mAh power system Standard two 5000mAh external batteries Flight height limit ≤30m Flight speed limit ≤10m/s Spray efficiency 12-15 Hectares/hour (2.2L/mu, 9m spray width, 7m/s working speed) (2L/acre, 8m spray width, 7m/s working speed Support 300-360kg fertilizer spreading Spread 50KG fertilizer ≥ 7 times Spread 45KG fertilizer ≥ 8 times Ps: The remaining battery power is about 30% after operation. Applicable Industries Farms, Garden, Golf Course, Home Use, Energy & Mining, Other After-sales Service Provided Online support/ on site support Warranty 1 Year Delivery Yes Please fill out the form below to send an inquiry about this product. First Name Last Name Phone Number Your Email Your EnquiryPlease prove you're human, not a bot.12 10?Δ First Name Last Name Phone Number Your Email Your EnquiryPlease prove you're human, not a bot.6 11?Δ Related products Grain Interrow Cultivator For Mechanical Grass Control Between Plant Rows.R90,150.00View Product 240HP Farm Tractor, Heavy Duty Farm Tractor for With Luxury Cabin-ZE120R629,000.00View Product Sale 1 ton Small Micro Crawler Excavators, Model Infront LTR407R60,000.00 Original price was: R60,000.00.R56,180.00Current price is: R56,180.00.View Product Sale BV2-9 Tine CultivatorR85,000.00 Original price was: R85,000.00.R82,570.00Current price is: R82,570.00.View Product
