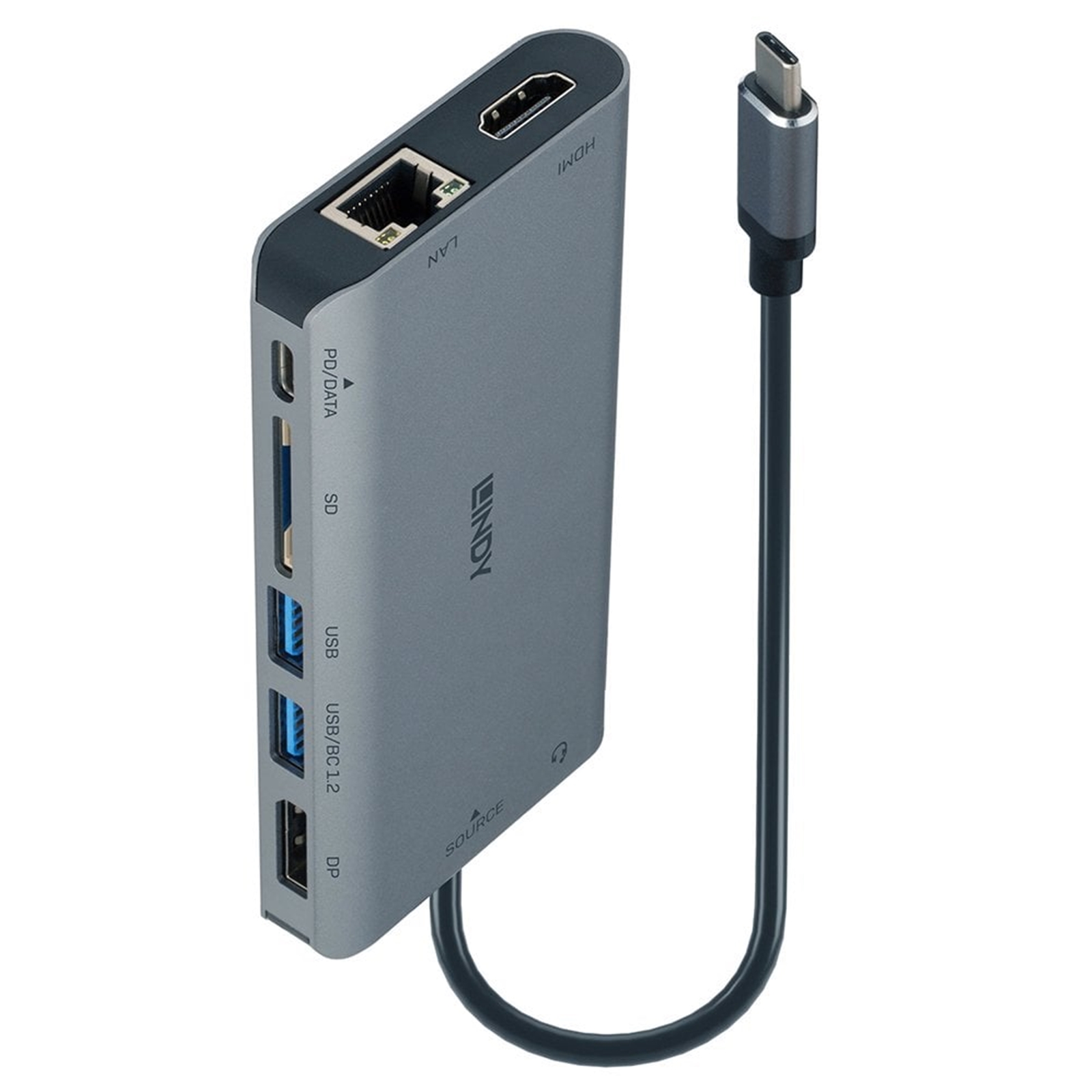

LINDY 43323 DST-Mini XT, USB-C Laptop Mini Docking Station with S…

Extended DisplaysThe DST-Mini XT can support a single extended display at 4K@30Hz through the HDMI or DisplayPort connections. Dual display setups are also possible with crisp Full HD 1080p. This makes this dock the perfect solution for any creative, data analyst or intense spreadsheet worker. Added ConnectivityThis docking station can unlock a world of connectivity for your device. Delivering DisplayPort, HDMI, Gigabit Ethernet, SD Card Slot, USB-C, SuperSpeed USB Type A ports (5Gbps) and a combined 3.5mm headphone jack. To deliver as much added functionality as possible, the right USB Type A port has both SuperSpeed data transfer and Battery Charging 1.2, meaning you can charge connected mobile devices. Pass-through ChargingThanks to the USB-C PD 3.0, by connecting a USB-C charger to the DST-Mini XT you can expect up to 100W charging of the connected laptop. With Battery Charging 1.2, one of USB Type A port delivers 5V and up to 1.5A for faster charging. Simply connect one USB-C cable and be confident that your laptop and connected devices will be fully charged and ready to go. Plug-and-PlayThis docking station does not require any driver installation. This allows for seamless large-scale implementation and a hassle-free experience. SpecificationsInterface: USB Type C to 1x HDMI / 1x DP / 1x RJ45 / 2x USB Type A / 1x USB Type C / 1x SD / 1x AudioInterface Standard: USB 3.2 / 3.1 Gen 1 / USB 3.0, HDMI 1.4, DP 1.2, Gigabit LAN, Audio (combo)Supported Bandwidth: 5 Gbps, 10/100/1000 MbpsMaximum Input Resolution: 3840×2160@30HzMaximum Output Resolution: 3840×2160@30Hz (HDMI), 3840×2160@30Hz (DP), simultaneous connection: 1920×1080Chipset: VL102-Q4, VMM3332, RTL8153B, VL817, FE1.1S, GL823K, HS-100B, VL163, MP28167Compatibility: USB Type C or Thunderbolt 3/4 equipped computers with DisplayPort Alternate Mode support. Windows, macOS, Linux, Android, ChromeOSPower Delivery: PD 3.0 up to 100W (20V 5A)HDCP Support: HDCP 1.4Supported Audio: Supports 48/44.1kHz Audio sampling rateSeparate Audio Ports: 1x Audio combo port 3.5mmSpecial Features: DisplayPort Alternate Mode, USB Type C Female port supports power and data, 1x Battery Charging 1.2 port ConnectorsInputs: 1 x USB Type C (Male)Outputs: 1x HDMI (Female), 1x DisplayPort (Female), 1x RJ45 (Female), 2x USB Type A (Female), 1x USB Type C (Female) / 1x SD slot, 1x 3.5mm Audio (Female)Power: 1 x USB Type C (Female) PD port Physical PropertiesDimensions WxDxH: 116.5x61x16mm (4.59×2.4×0.63in)(Fixed) cable length: 250mm (9.84in)Housing Material: AluminiumNet Weight: 0.115kg (0.25lb)Operating Temperature: 0° – 55°C (32°F – 131°F)Storage Temperature: -10°C – 70°C (-14°F – 158°F)Humidity: 0 – 85% RH (non-condensing)Power Requirements: 15WColour: Grey MiscellaneousPackaging Type: Carton BoxPackaging Dimensions: 150x137x120mm (5.91×5.39×0.79in)Gross Weight: 0.15kg (0.33lb)Warranty (Years): 2Certificated: CE, UKCA, FCC, REACH & RoHS, California Proposition 65 Package ContentsUSB 3.2 Type C Laptop Mini DockLindy Manual
